Product Introduction
Minil-12g high-capacity mini-centrifuge adopts the international advanced design concept and manufacturing technology, with the advantages of smooth and beautiful appearance, compact and stable structure, high versatility and easy operation, at the same time with a“Smooth start” and“Smooth braking” features of the centrifuge; The mini-centrifuge is very suitable for micro-tube filtration and rapid centrifugation, micro-blood cell separation, microbial sample processing, PCR experimental zone centrifugation, to prevent the phenomenon of liquid hanging in the centrifuge tube, etc. , it is the first choice for processing small batch centrifugal samples.
Advantage
1.Adopt an advanced and reliable PI high-frequency wide-range power supply control scheme, in line with the power grid around the world, using 16-bit MCU to calculate PWM speed can control voltage, current, speed and effective centrifugal time more accurately, and ensure that it can prolong the life and electromagnetic noise of the motor under harsh operating conditions.
2.A reliable and durable DC permanent magnet motor with a wider speed range of 500-12000 rpm with ± 9% accuracy; a centrifugal speed step-up of 500 rpm with an effective centrifugal time range of 1-99 minutes or 1-59 seconds.
3.Faster Acceleration/deceleration rate, which is required to complete the experiment in a shorter time.
4.high-strength host and turning material, which can resist all kinds of chemical corrosion, and turning material has high-temperature disinfection function.

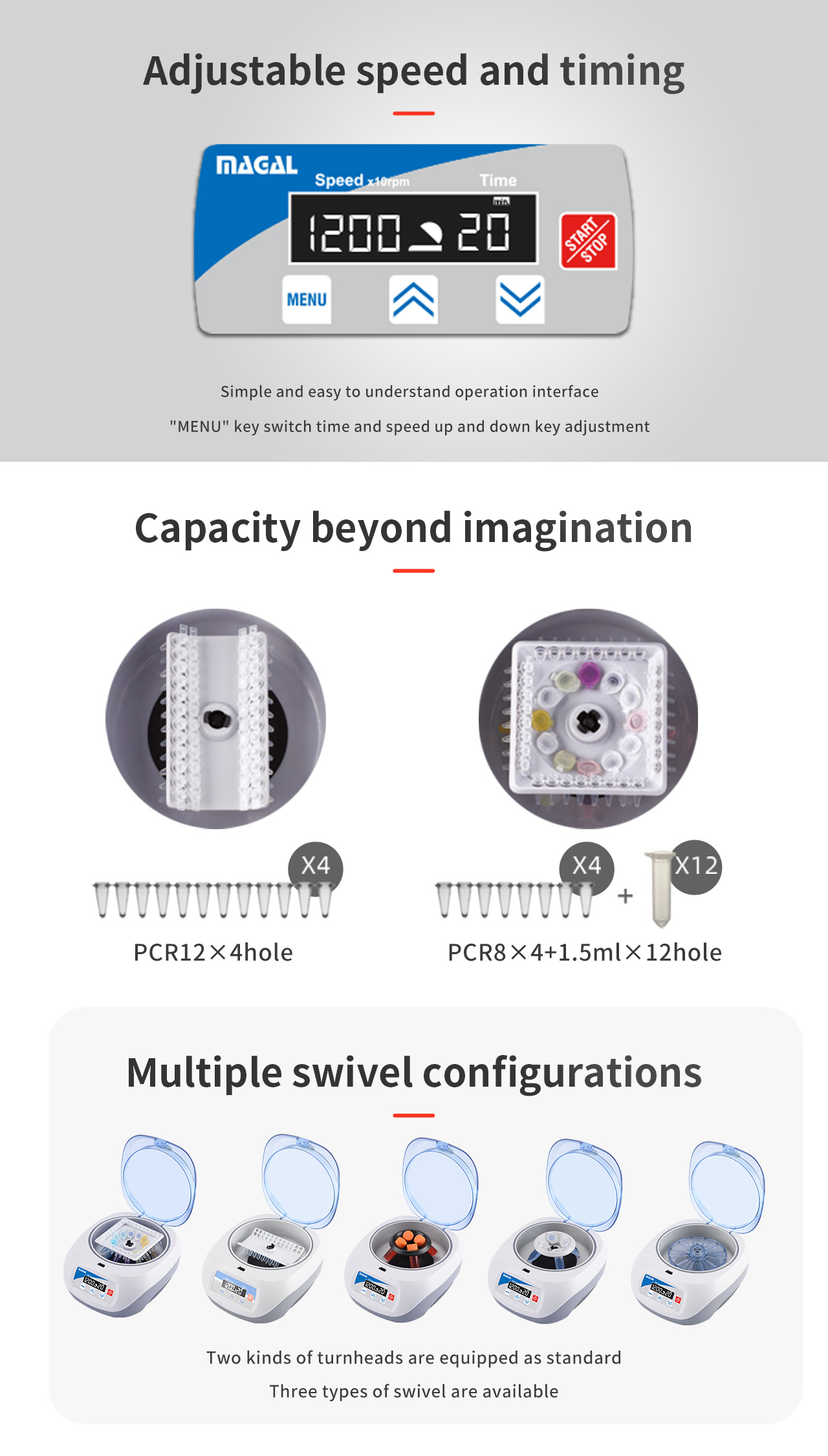

5. the unique snap-on design of the rotating head allows the experimenter to change the rotating head easily and quickly without using any tools.
6.The novel composite tube rotating head is compatible with various test tubes; It can satisfy the basic requirement of the experiment without changing the head.
7.RSS material damping, running more smoothly, rotating space of 360 ° arc, no angle, small wind resistance, small temperature rise, ultra-quiet, the whole machine noise ≤60db.
8.The door cover protection, overspeed and imbalance detection system, which provides real-time monitoring of the centrifuge process to ensure the safe operation of the instrument. Sound signals will be given at the end of operation, in case of error or imbalance, and the instrument will be stopped at the same time, lCD.
Product Introduction
Part.No. | MiniL-12G |
Input voltage | AC100-250V/50/60Hz |
Power fuse | PPTC/Self-recovery fuse/no need to replace |
Input power[W] | 45W |
Drive control system | ST16 bit MCU/PWM/ Speed Adjustable |
Display | White LCD on black background |
Motor | DC24V/DC permanent magnet motor |
Timing Control | 1-99min.1-59sec. |
Speed [r/min.] | 500~12000rpm±6% |
Speed Increase | 500rpm |
Max RCF[×g] | 9660×g |
誤操作/報警故障 | 聲音提示+顯示代碼 |
Dimensions:D×W×H | 194×229×120 |
Weight | 1.6 |
Noise level at max. speed(apprex) | ≤60dB(A) |
Acceleration time [sec] | ≤13s |
Deceleration time [sec] | ≤16s |
Protection class | IP20 |
Interference suppression standard | +5-40℃/80% |
Interference suppression standard | EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
Rotor Technical data
Part.No. | Rotor.No. | capacity ML×No. | Max. Speed rpm/min. | Max. RFC×g |
MinilL-12G-A-1 | #1 | 1.5/2×12+PCR0.2×8×4 | 12000 | 9500 |
MinilL-12G-A-2 | #2 | PCR0.2×12×4 | 12000 | 5960 |
MinilL-12G-A-3 | #3 | 5×4 | 12000 | 9660 |
MinilL-12G-A-4 | #4 | Capillary tube×12 | 12000 | 8371 |
MinilL-12G-A-5 | #5 | 5/1.8/1.1×4 | 7000 | 3180 |
Order information
Part.No. | Part Name | Specification | |
MiniL-12G-201000 | MiniL-12G | Main Machine | |
MiniL-12G-201001 | MiniL-12G-A-1 | Multi use rotor 1.5/2ml×12+PCR0.2ml×8wells×4 rows | optional |
MiniL-12G-201002 | MiniL-12G-A-2 | PCR rotor 0.2ml×12wells×4rows | optional |
MiniL-12G-201003 | MiniL-12G-A-3 | Angle rotor 5ml×4wells conical button tube | optional |
MiniL-12G-201004 | MiniL-12G-A-4 | HCT Rotor Dia.1.5mm×length 40mm capillary tube ×12pcs | optional |
MiniL-12G-201005 | MiniL-12G-A-5 | Angle rotor 5ml×4well selfstand screw cap tube | optional |
MiniL-12G-201006 | MiniL-12G-AP-1 | Adaptor 0.5ml×12pcs /standard Mini-L-A-1 | |
MiniL-12G-201007 | MiniL-12G-AP-2 | Adaptor 0.2ml×12pcs /standard Mini-L-A-1 | |
MiniL-12G-201008 | MiniL-12G-AP-3 | Adaptor 1.8/1.1ml×4pcs /standard Mini-L-A-5 | |
MiniL-12G-201009 | MiniL-12G-P-4 | HCT read card/standard Mini-L-A-4 |
