Low Speed Refrigerated centrifugeM500R
Product Introduction
M500R Low Speed Refrigerated centrifuge which functions are powerful, highly commonality and handy for operation.The centrifuge which use the latest controller system which will be reliable quality and superior performance. It widely used in Medical clinical biochemistry, hematology, immunology, clinical research,molecular biology research and routine analysis in industrial laboratories. Also more pronounced in the genetic、protein nucleic acid and PCR field .

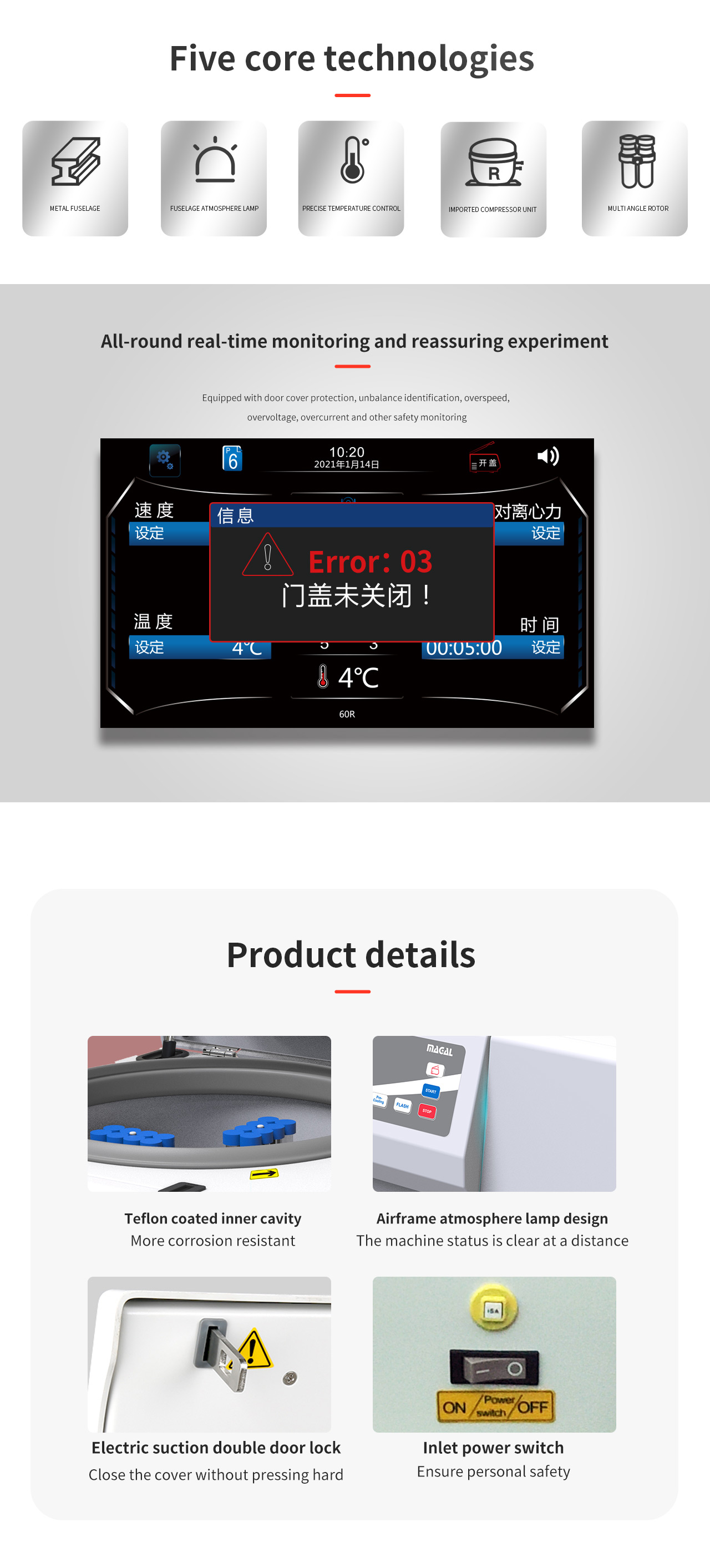

Advantage
1.Smaller footprint, save space in the laboratory.
2.Wide option of rotors and adapters for all commonly used centrifuge tubes，vacuum blood tube.
3.Imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control.The cooling effect is faster and more accurate.
4.Temperature keeping at -4℃/+4℃ by the Max RPM.Fast pre-cooling function with independent Pre-Cooling buttons on the panel.It can reach 4℃ in a very short time at room temperature.
5.Auto-tuning temperature control function in different environments, no need human intervention .
6.Automatic rotor recognition and unbalance detection to sure centrifugal safety.
7.Electric suction double lid lock design,Quickly lid closed with one touch,quiet and safety.
8.Double air rod support makes centrifuge lid opening and closing smoother,more lower opening height.
9.Thirty built-in storage programs/5 panel shortcut program, more convenient.
10.PTFE cover Stainless steel centrifuge cavity which can resist corrosive samples centrifugal.
11.The seal ring of lid cover is formed by an imported rubber integrated mold.
12.Seven inch IPS full view 16 million chroma true color LCD display. Brightness adjustable to meet health requirements.
13.External USB2.0 interface is convenient for system upgrade and experimental data download.
14.Built-in start timing and stable timing function which can effectively calculate the centrifugal efficiency.
15.A variety of downtime music ringtones and duration of music and prompt tone can be adjusted.
16.Make the experiment more comfortable.
17.The display interface supports Chinese and English menu switching.
Main machine Technical data
Part.No. | M500R |
Input voltage | AC220V/50～60Hz |
Input power[W] | 650W |
Max. Capacity[ml] | 480ml(15ml×32) |
Speed Range[r/min.] | 200~6000rpm/step increase 10rpm |
Speed Accuracy | ±20rpm |
Max.RCF [×g] | 5150×g/step increase10×g |
Static temperature setting range | -20℃~+40℃/step increase0.5℃/Display accuracy 0.1℃/control accuracy±2℃ |
Max.Load/Temperature control at Max. speed | -12℃~+40℃/Display accuracy0.5℃/control accuracy±2℃ |
Motor | Maintenance-free brushless inverter motor |
Timing Control | 1-99hrs/1-59min/1-59sec；accuracy±1sec |
Drive control system | Infineon vector sine wave drive control system |
Digital Display | 7 inch IPS full view 16 million chroma true color LCD display/Resolution 1024×600dpi |
Operation method | multi touch+Physical button |
Store program | 10 built-in storage programs/5 panel shortcut program/equipped with NORAML button |
Lid lock method | Electronic automatic suction double lock |
Max.acceleration time[sec]/Speed up gear | 30s/9gears |
Max.Deceleration time[sec]/Speed down gear | 25s/10gears，0gears free stop |
Refrigeration Compressors/Refrigerant | Imported SECOP?with 3C certificate/R134a |
Dimensions:D×W×H | 560×680×376 |
Weight without rotor [Kg] | 76 |
Noise level at max. speed(apprex) | ≤65dB(A) |
Protection class | IP20 |
Allowable ambient temperature/relative humidity | +5~40℃/80% |
Interference suppression standard | EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2 |

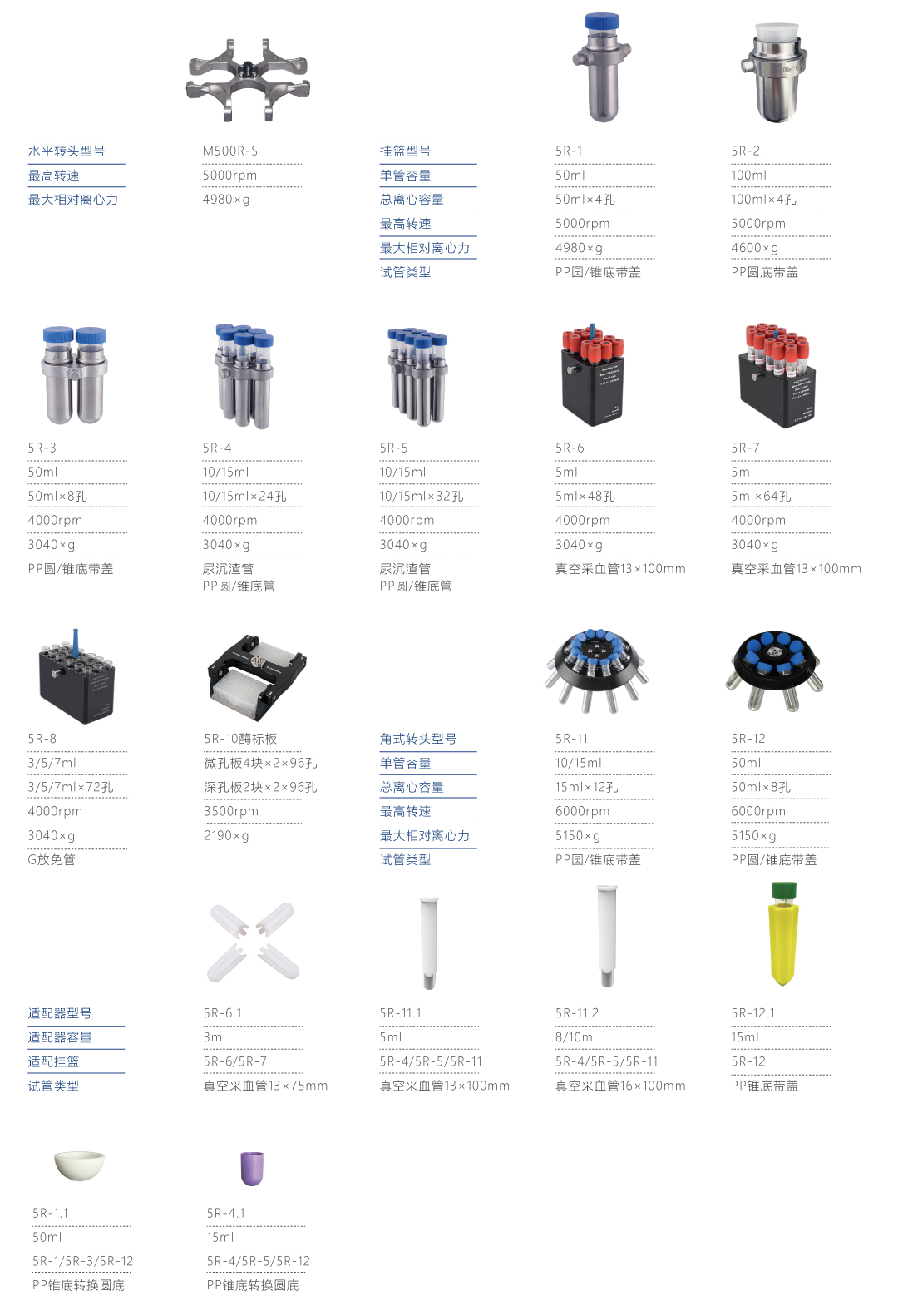

Rotor Technical data
Part Name | capacity ML×No. | Max. Speed rpm/min. | Max. RFC×g | Tube specification |
5R-1 | 50×4 | 5000 | 4980 | PP round/conical bottom with cap |
5R-2 | 100×4 | 5000 | 4600 | PP round bottom with cap |
5R-3 | 50×8 | 4000 | 3040 | PP round/conical bottom with cap |
5R-4 | 10/15×24 | 4000 | 3040 | Blood collection tube/Urine Sediment tube/PP round/conical tube |
5R-5 | 10/15×32 | 4000 | 3040 | Blood collection tube/Urine Sediment/PP round/conical tube |
5R-6 | 3/5×48 | 4000 | 3040 | Blood collection tube |
5R-7 | 3/5×64 | 4000 | 3040 | Blood collection tube |
5R-8 | 3/5/7×72 | 4000 | 3040 | G Ria Vial |
5R-10 | Microplate 4pcs×2×96 Deep well plate 2pcs×2×96 | 3500 | 2190 | |
5R-11 | 15×12 | 6000 | 5150 | PP round/conical bottom with cap |
5R-12 | 50×8 | 6000 | 5150 | PP round/conical bottom with cap |
Order information
Part.No. | Part Name | Specification | |
M.01.023 | M500R | Main Machine | |
L.05.002 | M500R-S | Swing rotor for M500R-S-1~M500R-S-8 basket | Standard |
L.03.001 | 5R-1 | Basket /50ml×4 pcs | Optional |
L.03.003 | 5R-2 | Basket /100ml×4 pcs | Optional |
L.03.002 | 5R-3 | Basket /50ml×8 pcs | Optional |
L.03.004 | 5R-4 | Basket 8/10/15ml×24 pcs | Optional |
L.03.005 | 5R-5 | Basket 8/10/15ml×32 pcs | Optional |
L.03.006 | 5R-6 | Basket 3/5ml×48 pcs | Optional |
L.03.007 | 5R-7 | Basket 3/5ml×64 pcs | Optional |
L.03.008 | 5R-8 | Basket 3/5/7ml×72 pcs | Optional |
L.06.008 | 5R-6.1 | Adaptor 3ml×48pcs/standard M500R-S-6 | Standard5R-6 |
L.06.009 | 5R-7.1 | Adaptor 3ml×64pcs/standard M500R-S-7 | Standard5R-7 |
L.03.017 | 5R-10 enzyme label plate | Microplate 4 pcs×2×96/Deep well plate 2 pcs×2×96 | Optional |
L.02.001 | 5R-11 | Angle rotor/15ml×12 pcs | Optional |
L.02.002 | 5R-12 | Angle rotor/50ml×8 pcs | Optional |
L.06.017 | 5R-11.1 | Adapter 5ml for 5R-4/5R-5/5R-11 | Optional |
L.06.018 | 5R-11.2 | Adapter 8/10ml for 5R-4/5R-5/5R-11 | Optional |
L.06.019 | 5R-12.1 | Adapter 15ml for 5R-12 | Optional |
L.06.020 | 5R-1.1 | Conversion adapter 50ml round bottom to conical bottom | Optional5R-1/5R-3/5R-12 |
L.06.021 | 5R-4.1 | Conversion adapter 15ml round bottom to tapered bottom | Optional5R-11/5R-4/5R-5 |
