Multi functional Vortex MixerM8
Product Introduction
With advanced design concept and manufacturing technology. M8 Multi functional Vortex Mixer.
Come with aesthetic appearance as well as the compact structure. High versatility, simple operation to suitable for tube,centrifuge tube and ELISA plates oscillation.
Advantage
1.ST intelligent analysis and processing platform can sensitively respond to the various modes work requirements. Equipped with fast processing chip set and electronic sensing technology, intelligent control of speed, time and working mode.
2.Full size of the fixture to meet the needs of test tubes centrifuge tube and plates with different capacities.
3.Perfect body structure optimization design. Sufficient counterweight and Centric balance piece designing Provides a stable and quiet working platform for various oscillating mixing.
4.The permanent magnet brushless DC motor with over-temperature protection which is not easy to heat up. It ensure long-term trouble-free operation under high-speed mixing. No more extra accessories, more powerful lower noise.
5.Two ways of safety operation--Inching ,continuous. Easy to exchange.Counting and count down timing function to make the experiment more accuracyfixture and it’s speed automatic distinguish for safety using.
Technical data
Part.No. | M8 |
Input voltage | DC24V |
Input power[W] | 18W |
Motor | DC24V permanent magnet motor |
Speed Control | PWM Stepless speed control |
Operation | INCHING：Pressing /continuous working |
Power fuse | PPTC/Self-recovery fuse/ no need change |
Maximum load | 1.5Kg |
Speed [r/min.] | 200-3,000r/min.±15rpm |
Oscillation mode | Circumferential |
Orbit [mm] | 4.5 |
Adaptive fixture | automatic distinguish |
Display | LED |
Timing Control | 1S-999min/Countdown/inching count |
Dimensions:D×W×H | 198×138×67 |
Weight[kg] | 4.1kg |
Noise by Max.Speed | ≤45dB(A) |
Fastest acceleration time [sec] | ≤3s |
Fastest deceleration time[sec] | ≤3s |
Allowable ambient temperature/relative humidity | +5~40℃/80% |
Protection class | IP20 |
Interference suppression standard | EN 61010-1,EN 61010-2-020,EN 61326-1, EN 61010-3-2/A2 |

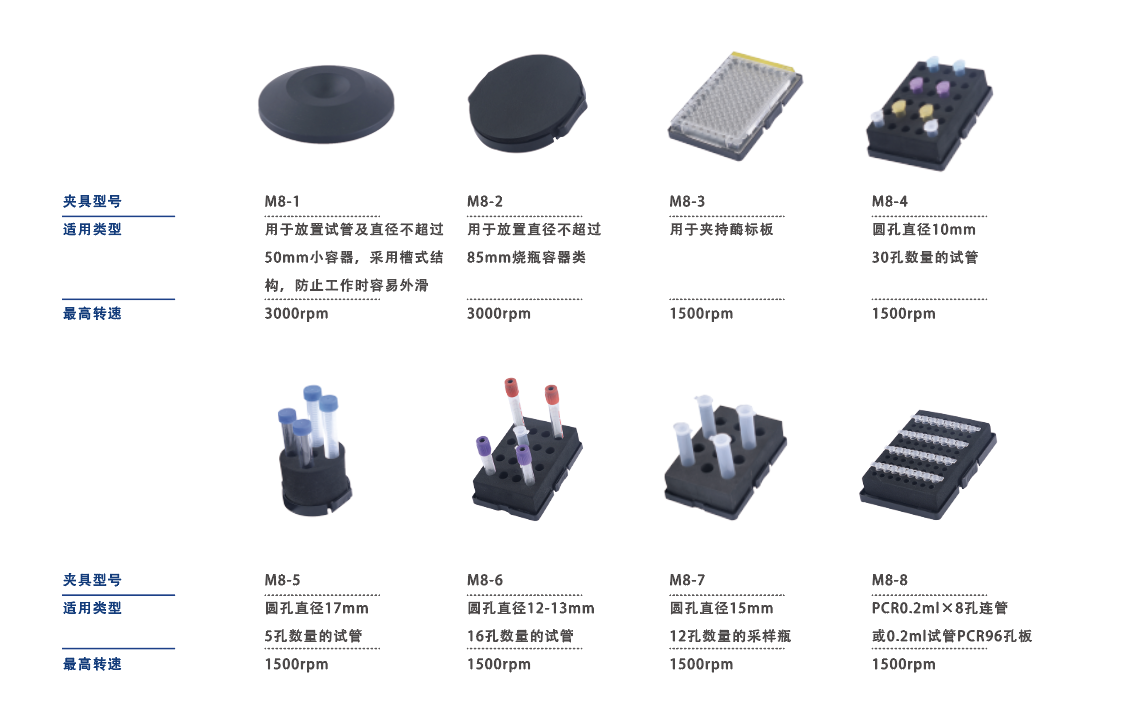

Fixture parameter
Order information
Cat.No. | Part.No. | Specification | |
M.01.028 | M8 | Main Machine | |
L.04.012 | M8-1 | use for setting tube which the diameter no more than 50 mm smaller container | Standard |
L.04.002 | M8-2 | use for setting conical flask which the diameter no more than 65 mm | Standard |
L.04.016 | M8-3 | ELISA Plat fixture.Use for,ELISA Plate and square adapter. | Standard |
L.04.003 | M8-4 | (centrifuge tube)adapter,Together with ELISA Plate fixture,30 jacks,Hole Diameter 10mm | Standard |
L.04.004 | M8-5 | (centrifuge tube)adapter,Together with ELISA Plate fixture,5 jacks,Hole Diameter 17mm | Standard |
L.04.005 | M8-6 | (centrifuge tube)adapter,Together with ELISA Plate fixture,16 jacks,Hole Diameter 12-13mm | Standard |
L.04.006 | M8-7 | (sample vials)adapter,Together with ELISA Plate fixture,12 jacks,Hole Diameter 15 mm | Optional |
L.04.007 | M8-8 | PCR tube 0.2ml×8/PCR 96wells plate adapter together with ELISA Plate fixture | Optional |
L.04.008 | M8-9 | (centrifuge tube)adapter,Together with ELISA Plate fixture,12 jacks,Hole Diameter 17mm | Optional |
L.04.009 | M8-10 | (centrifuge tube)adapter,Together with ELISA Plate fixture,2 jacks,50ml centrifuge tube | Optional |
L.04.0010 | M8-11 | (sample vails )adapter,Together with conical flask fixture,4 jacks,Hole Diameter 25mm | Optional |
